Features
  Unit pulling force for the various series ranges from 200KGS to 6000KGS.
  Line speed is adjustable from 0.1m/min to 100 m/min, and high-sensitivity clamps effectively meet the needs of every type of products.
  Auto pressure balance system responds to varying shapes of products to avoid production shutdowns when processing product sizes are changed.
  Microcomputer counter can be used to set the length of products and count the quantities of products.
  Design of the large Haul-off machine includes thick,hardened glass sliding doors which provide a clear view of the production process with a high degree of safety. They also facilitate easy maintenance and repair.
  Compound tracks use UHMW-PE with outstanding wear resistance and minimal pollution, and rubber caterpillars are specially flush designed for easy replacement.




ETB Series

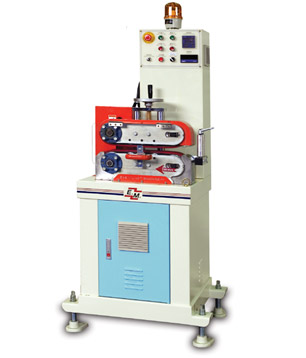

ETB-02

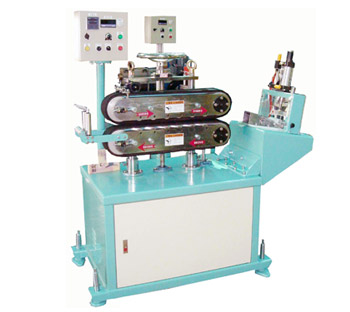

ETB-06







Specifications
ETB0612
ETB1206
Haul-Off Type
Belt
Effective Clamping Length (MM)
600
1000
Effective Clamping Width (MM)
100
160
Effective Clamping Height (MM)
110
150
MAX. Pulling Force (N)
3400
6000
Drive Motor(HP)
2
3
Installed Power (KW)
2
4.5
Overall
Sizes(MM)
Length (A)
888
1800
Width (B)
620
900
Height (C)
1535
1850
MAX. Line Speed(M/MIN) Available
12
6
Weight (KG)
550
1200


Specifications are subject to change without notice.


..........................................................................................................................................................................................................................................................
