Features
  PVC counter rotating twin extruder available in sizes of EMD-65, EMD-90 and EMD-130 for profile and compounding, output ranges from 100 to 800 kgs/hr.
  Single screw extruder comprises model EMS-35, 45, 55, 65, 85, 100 and 120 to meet a wide range of requirements for extrusion types,materials,and application.
  Precision grinding gears deliver a driving force that is more than 98 percent accuracy with noise levels under 65 dB.
  "PID" thermo controller with "SCR" output temperature systems are used throughout to minimize power consumption and maintain temperature levels which are within one degree of set temperatures.
  Along with cast aluminum cooling device on the barrel, and high efficiency driving motor and gears. That ensure consistent products and high outputs.
  Optional extras:
*Computer controller system.
*P.T.A Treatment for screw

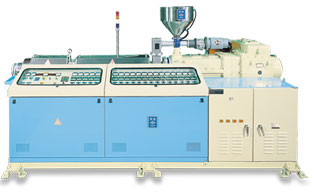

Twin screw extruder


EMD-65



EMD-90






Specifications
Twin Screw Extruder
EMD-65
EMD-90
EMD-110
EMD-130
Screws Length (L/D)
25
25
22
22
Screws Diameter (MM)
65*2
90*2
110*2
130*2
Screws Speed (R.P.M.)
45
40
38
32
Drive Motor Power (HP)
20
30
60
75
90
100
125
150
Cylinder Heating (KW)
18
22
30
38
42
50
80
Flange Heating (KW)
5
6
7.5
8.5
Cylinder Cooling Power (KW)
0.2×3
0.2×3
0.3×4
0.3×4
Installed Electric Power (KW)
40/51
82/102
119/133
175
Number Of Die Heating Zones
1+3
1+3
1+4
1+5
Number Of Cylinder Heating Zones
4
5
6
6
Hopper Sizes (KG)
100
150
200
200
Center Height (MM)
1050
1050
1050
1050
Weight (KG)
2000
3000
4100
5600
MAX. Output
(KG/H)
HDPE Pipe
PVC Profile
120
160
300
400
500
600
600
800
Overall Sizes(MM)
Length (A)
2600
4000
4420
5200
Width (B)
1300
1500
1500
1650
Height (C)
2100
2400
2400
2400
Specifications subject to change without notice,
HDPE pipe output can be further discussed.

..........................................................................................................................................................................................................................................................
