Features |
|
PVC counter rotating twin extruder
available in sizes of EMD-65, EMD-90 and EMD-130 for
profile and compounding, output ranges from 100 to 800 kgs/hr. |
|
Single screw extruder comprises model
EMS-35, 45, 55, 65, 85, 100 and 120 to meet a wide range of
requirements for extrusion types,materials,and application.
|
|
Precision grinding gears deliver
a driving force that is more than 98 percent accuracy with noise
levels under 65 dB. |
|
"PID" thermo controller with "SCR"
output temperature systems are used throughout to minimize power
consumption and maintain temperature levels which are within
one degree of set temperatures. |
|
Along with cast aluminum cooling
device on the barrel, and high efficiency driving motor and
gears. That ensure consistent products and high outputs. |
|
Optional extras:
*Computer controller system.
*P.T.A Treatment for screw |
|
|
|
|
|
|
|
|

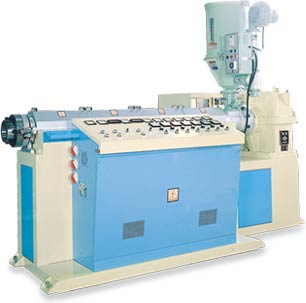

Single
screw extruder |
|
EMS-65
|
|
|
|
|
|
|
|
Specifications |
|
Single Screw Extruder
|
EMS-45
|
EMS-55
|
EMS-65
|
EMS-85
|
EMS-100
|
Screws Length (L/D)
|
24/28
|
24/28
|
24/28
|
24/28
|
24/28
|
Screws Diameter (MM)
|
45
|
55
|
65
|
85
|
100
|
Screws speed (R.P.M.)
|
60
|
|
120
|
|
60
|
|
120
|
|
60
|
|
120
|
|
50
|
|
120
|
|
50
|
|
120
|
|
Drive Motor Power (HP)
|
15
|
|
30
|
|
20
|
|
50
|
|
30
|
|
75
|
|
40
|
|
150
|
|
50
|
|
200
|
|
Cylinder Heating (KW)
|
7.5
|
10
|
12
|
14
|
15
|
Flange Heating (KW)
|
0.5
|
0.6
|
0.7
|
1
|
1
|
Cylinder Cooling Power (KW)
|
0.05×3
|
0.05×3
|
0.05×3
|
0.1×3
|
0.1×4
|
Installed Electric Power
(KW)
|
22
|
30
|
36
|
47
|
88
|
Number Of Die Heating Zones
|
2
|
3
|
3
|
3
|
4
|
Number Of Cylinder Heating
Zones
|
3
|
3
|
3
|
4
|
5
|
Hopper Sizes (KG)
|
50
|
50
|
50
|
100
|
100
|
Center Height (MM)
|
1050
|
1050
|
1050
|
1050
|
1050
|
Weight (KG)
|
850
|
950
|
1100
|
1600
|
2200
|
MAX. Output
(KG/H)
|
HDPE PIPE
|
|
|
70
|
|
|
|
100
|
|
|
|
150
|
|
|
|
350
|
|
|
|
500
|
|
PVC Profile
|
20
|
|
|
|
40
|
|
|
|
70
|
|
|
|
100
|
|
|
|
150
|
|
|
|
Overal Sizes(MM)
|
Length (A)
|
1700
|
2040
|
2360
|
2870
|
3260
|
Width (B)
|
980
|
1000
|
1025
|
1300
|
1500
|
Height (C)
|
1800
|
1900
|
2000
|
2150
|
2300
|
Specifications are subject
to change without notice,
HDPE pipe output can be further discussed.
|
|
|
|
