Features |
| |
PVC counter rotating twin extruder
available in sizes of EMD-65, EMD-90 and EMD-130 for
profile and compounding, output ranges from 100 to 800 kgs/hr. |
| |
Single screw extruder comprises model
EMS-35, 45, 55, 65, 85, 100 and 120 to meet a wide range of
requirements for extrusion types,materials,and application.
|
| |
Precision grinding gears deliver
a driving force that is more than 98 percent accuracy with noise
levels under 65 dB. |
| |
"PID" thermo controller with "SCR"
output temperature systems are used throughout to minimize power
consumption and maintain temperature levels which are within
one degree of set temperatures. |
| |
Along with cast aluminum cooling
device on the barrel, and high efficiency driving motor and
gears. That ensure consistent products and high outputs. |
| |
Optional extras:
*Computer controller system.
*P.T.A Treatment for screw |
|
|
 |
| |
|
|
| |
 |

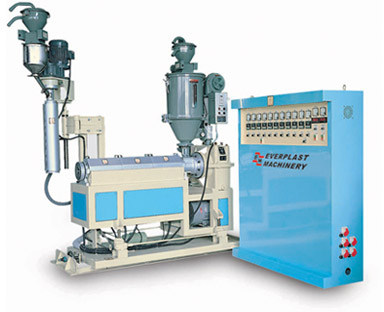

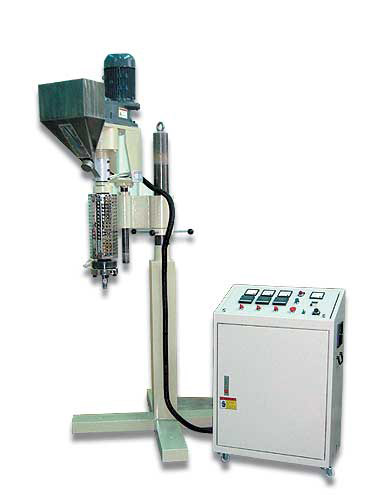

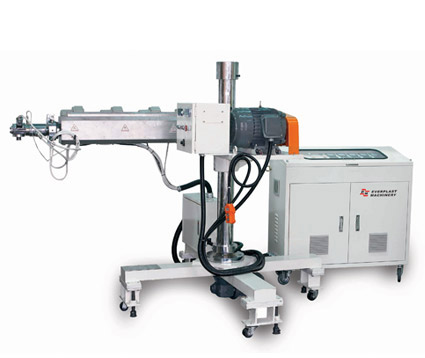

Co-extruder
screw extruder |
| |
|
|
|
| |
|
|
| |
|
Specifications |
|
Screws length
(L/D)
|
24
|
|
Screws diameter
(mm)
|
35
|
|
Screws speed (r.p.m.)
|
30
|
|
Drive motor power (HP)
|
2
|
|
Number off lange heating
zones
|
1
|
|
Number of cylinder heating
zones
|
3
|
|
Totle Power Consumption(kw)
|
10
|
|
Center height (mm)
|
1050
|
|
Weight (kgs)
|
750
|
|
Max. output (kgs/hr)
|
12
|
|
Overall sizes(mm)
|
1540L x 900W x 2200H
|
|
Specifications subject to
change without notice,
HDPE pipe output can be further discussed.
|
|
|
|
