Features |
| |
Cutting surface areas range from 100mm x 100mm of the ESC series to the 1200mm x 8mm of the EKC1200 series, with varying designs to fit different cutting requirements. |
| |
Specifications for the ESC series are:
Max. cutting speed: 20 times/min
|
Cutting tolerance: + 1mm |
| Cutting verticality: 0.3/100mm |
Blade speed: 3400RPM |
|
| |
Specifications for the EFC series are:
Max. cutting speed: 35 times/min
|
Cutting tolerance: +0.2mm |
| Cutting verticality: 0.3/100mm |
Blade speed: 3400RPM |
|
| |
Specifications for the EKC series are:
Cutting tolerance: + 0.2mm
|
|
| Max. work area: (H) 80mm x (W) 1200mm |
|
|
|
|
 |
| |
|
|
| |
 |

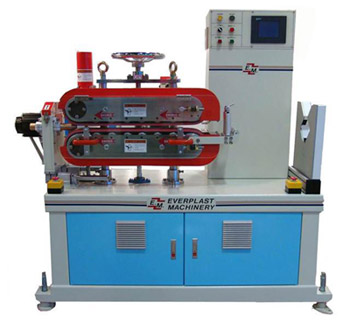

Fly
cutter type |
| |
EFC-35
EFC-50
|
|
|
|
| |
|
Specifications |
|
| |
MODEL |
EFC-35 |
EFC-50 |
|
Cutting
Motor(KW) |
1.5 |
1.5 |
|
Min. Pipe Dia(MM) |
1 |
1 |
|
Max. Pipe
Dia(MM) |
30 |
50 |
|
Max. Wall
Thicknes(MM) |
- |
- |
|
Max. Cutting Speed(M/Min) |
100 |
100 |
Center Height(mm) |
1050 |
1050 |
|
Install Electrial Power(Kw) |
1.5 |
1.5 |
|
M/C Size(mm) |
Length |
550 |
460 |
|
Width |
340 |
380 |
|
Height |
475 |
620 |
|
Weight(kg) |
160 |
170 |
|
|
| |
Specifications are subject to
change without notice. |
|
|
|
| |
|
| |
 |
MATERIAL |
FEEDING
SPEED Max(m/Min)
|
CUTTING
O.D.
Max(mm)
|
WALL
THICKNESS
Max.(mm)
|
CUTTING
TIMES Max.
(Time/Min)
|
TOLERANCE Max.(¡Ómm)
|
|
NM.
|
NC.
|
|
|
Soft and Thin Tube
|
75
|
¡í50
|
2
|
600
|
0.5
|
0.2
|
|
|
Soft and Thin Tube
|
25
|
¡í120
|
3
|
90
|
_
|
0.2
|
|
|
HARD PIPE
|
50
|
¡í450
|
50
|
1~3
|
1.0
|
0.2
|
|
|
PIPE
|
125
|
¡í450
|
50
|
1~3
|
1.0
|
0.2
|
|
|
PIPE
|
3000
|
¡í110
|
_
|
20
|
1.0
|
0.2
|
|
| |
|
