Features


Cutting surface areas range from 100mm x 100mm of the ESC series to the 1200mm x 8mm of the EKC1200 series, with varying designs to fit different cutting requirements.

  Specifications for the ESC series are:

Max. cutting speed: 20 times/min

Cutting tolerance: + 1mm
Cutting verticality: 0.3/100mm                     Blade speed: 3400RPM
  Specifications for the EFC series are:

Max. cutting speed: 35 times/min

Cutting tolerance: +0.2mm
Cutting verticality: 0.3/100mm Blade speed: 3400RPM
  Specifications for the EKC series are:

Cutting tolerance: + 0.2mm


Max. work area: (H) 80mm x (W) 1200mm

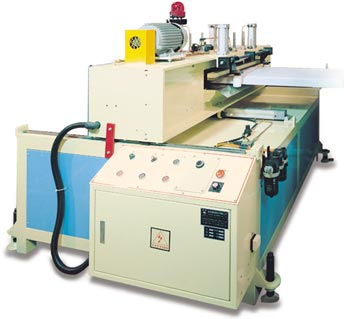

Blade/Saw type


ESC Series



EKC Series





Specifications

ESC14
ESC16
ESC18
ESC20
MAX. Cutting Width (MM)
200
280
330
400
MAX. Cutting Height (MM)
80
100
120
140
Cutting Motor Power(HP)
2
2
2
2
Travel Of Saw Carriage (MM)
355
405
455
505
Installed Power(KW)
2
2
2
2
Overall Sizes (MM)
Length(A)
1460
1460
1460
1460
Width(B)
830
830
1030
1030
Height(C)
1240
1240
1600
1600
Weight(KG)
300
320
400
420
  Specifications are subject to change without notice.



MATERIAL
FEEDING SPEED Max(m/Min)
CUTTING
O.D.
Max(mm
)
WALL
THICKNESS
Max.(mm)
CUTTING
TIMES Max.
(Time/Min)
TOLERANCE Max.(¡Ómm)
NM.
NC.
Soft and Thin Tube
75
¡í50
2
600
0.5
0.2
Soft and Thin Tube
25
¡í120
3
90
_
0.2
HARD PIPE
50
¡í450
50
1~3
1.0
0.2
PIPE
125
¡í450
50
1~3
1.0
0.2
PIPE
3000
¡í110
_
20
1.0
0.2



















..........................................................................................................................................................................................................................................................
