Calibrator Water Tank
For Profile

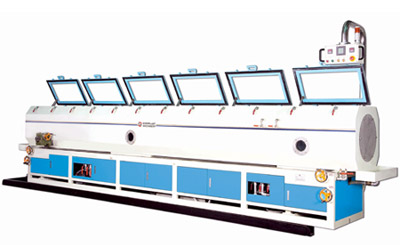

Vacuum Spray Cooling
Tank For Pipe






























































Features
  Utilizes vacuum pumps with ratings of 3 HP to 100 HP.
  Cooling capacity of 30 KGS/hr to 500 KGS/hr.
  Positions can be adjusted front and back or left and right. Front-back movements is done by a stepless inverter motor which can make either high-speed or incremental adjustments.
  Water flowmeter cooling device is displayed to allow control of die temperatures and monitor temperature records.
  A specially designed die clamp frame allows vertical and horizontal adjustment to accept molds of all sizes.
  A phase control electrical protector guards against errors in vacuum pump rotation.




EPST Series



EPST-605D

EPST-608




Specifications
EPST-154
EPST-304
EPST-308
EPST-608
EPST-3012
EPST-6012
MAX. Diameter(MM)
125
125
250
250
450
450
Length Of Vacuum Tank(MM)
1500
3000
3000
6000
3000
6000
Vacuum Pump Power(KW)
2.25x1
2.25x1
2.25x1
3.75x1
3.75x1
3.75x2
Spray Pump Power(KW)
1.5
1.5
2.25
3.75
3.75
5
Number Of Spray Nozzies
52
104
104
208
104
208
Guide Rollers
1
2
2
3
2
4
Installed Electric Power(KW)
5.5
6.25
7.5
11.25
10.5
17
Drainage Pump Power(KW)
0.75
1.5
1.5
2.25
1.5
3
Inflow Pipe Diameter(IN)
0.75
1
1
1.5
1.5
2.5
Exhaust Outlet Pipe Diameter(IN)
1
1.5
1.5
2
2
3
Weight (KG)
700
1300
1100
1700
1400
2400
Adjustable Length For Back And Forward (MM)
750
750
750
750
750
750
Adjustable Length For Right And Left (MM)
25
25
25
25
25
25
Adjustable Length For Up And Down (MM)
50
50
50
50
50
50


Specifications are subject to change without notice.


..........................................................................................................................................................................................................................................................
