Features |
| |
Adopted mechanic spreading which
can be achieved the spreading effectness perfectly, time & labour
saving. |
| |
There equipped three sets UV spreading
roller and employed in dual or ssingleby selected. |
| |
Fast and convenient replacement of
spreading roller, which is achieved by simply loosening the
screws that tighten the spreaing rollers for less effort and
time saving performance |
| |
UV speading material convenient &
rapid for recollecting. |
| |
The feeding speed can be adjusted
couple with the spreading speed. Alinear speed meter is provided. |
| |
This machine is suitable
for veneer board, plastic in jectioned& extruded door, veneer
board, rubber, wall panel ect. After ashing making spreading
use. |
|
|
| |
| |
|
Specifications |
| |
Specsifications
aresubject to individual requirement. |
|
|
|
| |
|
|
| |
|
|
| |
|
Features |
| |
Relieve the traditional spraying
operation, reduce the waste of money, offer rapid drying to
save time. |
| |
With two groups of coating wheels
and two UV lamp, which can be used separately or together. |
| |
Adjustable coating speed, with speed
meter adapting to the whole flow process. |
| |
Easy replacement of UV coating. No
stopping is required during the adding of UV coatings. |
| |
The machine has good heat-radiation
and cooing systern, which can effectively prolong the service
life of lamp. |
| |
The machine is applicable
to the back coating and drying of bamboo floor, which can effectively
prevent the water from permeating from the back of the floor
and. |
|
|
| |
|
|
| |
|
Specifications |
|
|
| |
|
Model
|
FC-520
|
FC-720
|
FC-1000
|
FC-1400s
|
|
Spreading speed
|
0-30m/min
|
0-30m/min
|
0-30m/min
|
0-30m/min
|
|
Eff.printing width
|
420mm
|
620mm
|
900mm
|
1300mm
|
|
Spreading roller size
|
Ø150x520mm
|
Ø150x720mm
|
Ø150x1000mm
|
Ø150x1400mm
|
|
Power
|
2HP
|
2HP
|
3HP
|
5HP
|
|
Voltage
|
380V
|
|
Mchine size
|
2000x
1500x1600mm
|
2000x
1700x1200mm
|
2000x
2000x1600mm
|
2000x
2400x1600mm
|
|
N.W./G.W.
|
5KW
|
5.6kw
|
7.8kw
|
12kw
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|

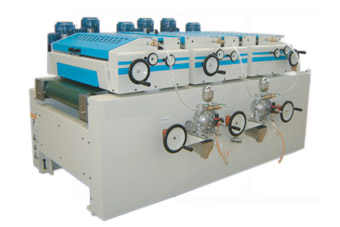

Features |
| |
The machine is suited for multiple
colore printing. Easy to operate. |
| |
Designed with upper printing method
for convenient inspection of the printing quality. Multiple
colors can be printed at a time. |
| |
Fast and convenient replacement of
PU and printing plate rollers, which is achieved by simply loodening
the screws that tigthen the PU and printing plate rollers for
less effort and time saving performance. |
| |
Convenient and fast ink collection |
| |
The feed speed is adjustable to meet
with the printing speed. Alinear speed meter is provided. |
| |
This machine is suited for printing
and multiple colors printing on plywood, extruded or injection
molded door, venetian blind, ceiling panel, rubber plate, wall
panels. |
|
|
| |
|
|
| |
|
Specifications |
|
|
| |
|
Model
|
FC-520
|
FC-720
|
FC-1020
|
FC-1420
|
|
Printing speed
|
5-40m/min
|
5-40m/min
|
5-40m/min
|
5-40m/min
|
|
Eff.printing width
|
440mm
|
620mm
|
900mm
|
1300mm
|
|
PU roller size
|
Ø203x520 mm
|
Ø203x720 mm
|
Ø203x1000mm
|
Ø20 x1400mm
|
|
PU roller size
|
Ø203x520 mm
|
Ø20 x720 mm
|
Ø203x1000mm
|
Ø203x1400mm
|
|
Power
|
2HP
|
2HP
|
3HP
|
5HP
|
|
Voltage
|
220V 380V 440V On request
|
|
Mchine size
|
3000x
1500x400
|
3000x
1700x1400
|
3000x
2000x1400
|
3000x
2300x1400
|
|
Meansurement
|
3100x
1600x1400
|
3000x
1700x1400
|
3100x
2100x1550
|
3100x
2400x1550
|
|
N.W./G.W.
|
2000/2500
|
2400/2800
|
2700/3000
|
3500/3800
|
|
|
| |
Specifications are subject to change without
notice. |
|
| |
|
|
